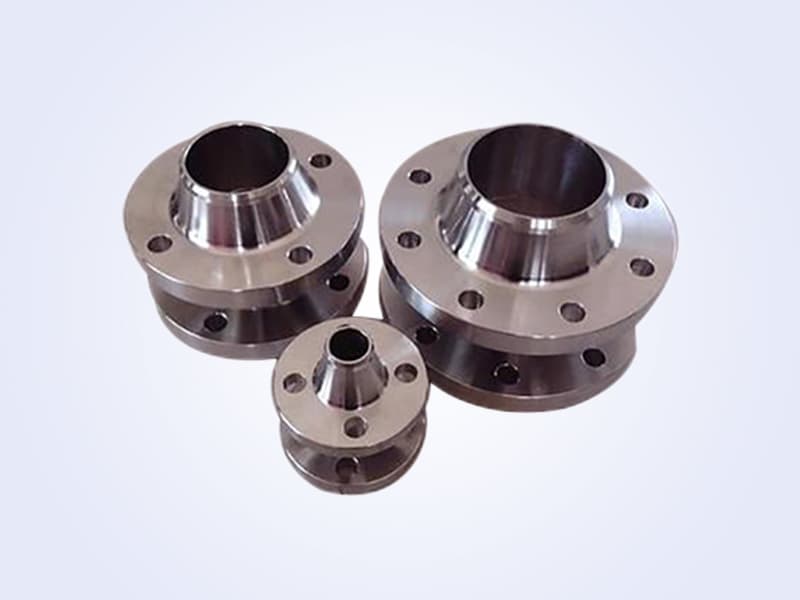

Common Failures and Solutions of Butt-Welded Pipe Fittings

In daily pipeline systems, butt-welded pipe fittings play a crucial role. They are not only important components connecting various pipes but also bear the pressure of carrying fluids, gases, etc. However, with prolonged use or improper operation, butt-welded pipe fittings may encounter some failures. So what are the common failures? And how to solve these problems? Today we will delve into this topic.

Common Failure 1: Leakage

Leakage is one of the common failures in butt-welded pipe fittings. Imagine if the water pipe at home leaks, almost everyone would feel frustrated. So,

Why does it happen?

Typically, leakage can be caused by poor welding, material aging, or excessive external pressure.

Solving this problem is not complicated. If leakage is due to poor welding, it can be resolved by re-welding. When re-welding, ensure the standardization of welding techniques and the quality of welding materials. If it is material aging, replacing the butt-welded pipe fittings may be necessary. Additionally, proper pressure control during installation can effectively prevent leakage issues.

Common Failure 2: Corrosion

Corrosion is another failure that can affect the performance of butt-welded pipe fittings. Corrosion not only shortens the service life of fittings but can also lead to pipe rupture in severe cases, which is quite troublesome! So how does corrosion occur? It is usually due to chemical reactions between the inner and outer environments of the pipe, such as chemical agent erosion or impurities in the water.

To prevent corrosion, preventive measures can be taken. For example, choosing materials with good corrosion resistance or applying anti-corrosion coatings on the fitting surface are good options. Additionally, regular inspection and maintenance are necessary to ensure early detection and resolution of problems.

Common Failure 3: Deformation

Deformation of butt-welded pipe fittings is usually caused by excessive external pressure or temperature changes. It is like an over-stretched rubber band that loses its elasticity and shape. Deformation of butt-welded pipe fittings can lead to instability in the pipeline system, affecting the overall system operation.

The key to solving deformation problems lies in reasonable pipeline system design, ensuring butt-welded pipe fittings can withstand the corresponding pressure and temperature. During installation, pay attention to the fixation of fittings to avoid deformation caused by external factors such as vibration. Additionally, using supports can enhance the stability of the fittings.

Common Failure 4: Weld Cracks

Weld cracks are another common issue in butt-welded pipe fittings, usually occurring during the welding process. It is like a crease in a book; although it does not affect the overall use of the book, if serious, it can affect page turning. Weld cracks may be caused by improper welding techniques, inappropriate material selection, or poor temperature control during welding.

To solve the problem of weld cracks, first check the welding process to ensure the rationality of welding parameters. When selecting materials, also consider their weldability. Meanwhile, necessary heat treatment should be performed after welding to eliminate internal stress, thereby reducing the risk of cracks.

Butt-welded pipe fittings play an important role in pipeline systems. However, once failures occur, they can bring trouble to the entire system. Understanding these common failures and their solutions can help us better maintain the smooth operation of the pipeline system.

Regular inspection, reasonable design, and selection of appropriate materials are the best methods to prevent failures of butt-welded pipe fittings. For any failure, timely measures should be taken to ensure the safety and stability of the pipeline system.
