Procurement Guide for Medium and Low Pressure Pipe Flanges

Introduction

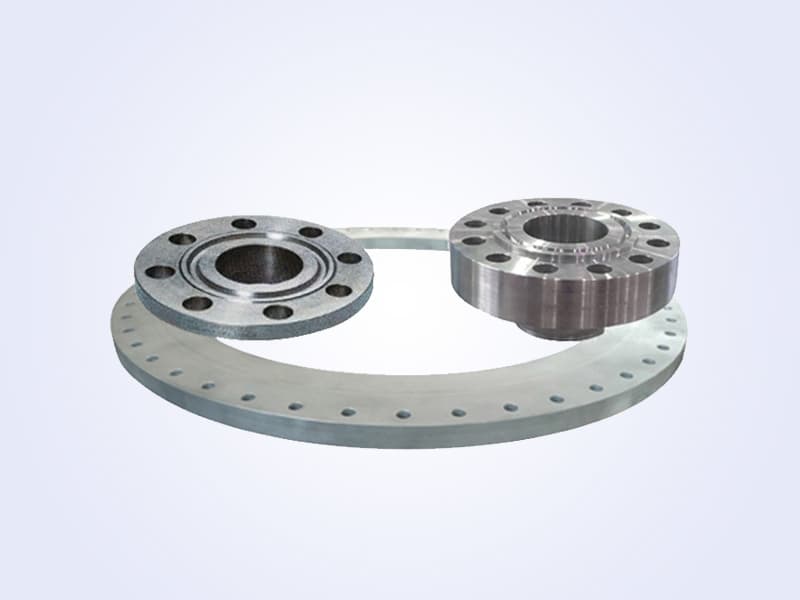

Flanges are critical components in any piping system, especially in medium and low pressure applications where reliability and cost-efficiency are key. For procurement engineers and industrial buyers, selecting the right flange is not just about matching dimensions; it involves understanding standards, material specifications, and quality control documentation. This guide provides a structured approach to procuring medium and low pressure flanges, focusing on practical considerations to ensure long-term performance and safety.

Flange Standards to Confirm

Before issuing an RFQ, verify which flange standard applies to your project. Common standards for medium and low pressure flanges include:

• ASME B16.5: Covers flanges from NPS 1/2 to NPS 24, with pressure classes 150, 300, 400, 600, 900, 1500, and 2500. For medium/low pressure, Class 150 and 300 are typical.
• EN 1092-1: European standard for flanges with pressure ratings PN 2.5 to PN 400. PN 6, 10, and 16 are common for low pressure systems.
• JIS B2220: Japanese standard for steel pipe flanges, with ratings 2K, 5K, 10K, etc., where 5K and 10K are used in low pressure applications.
• GB/T 9115-2010: Chinese standard for steel pipe flanges, with PN ratings similar to EN.

Always specify the standard and pressure class in your RFQ to avoid mismatches.

Material Selection and Certifications

Material choice impacts corrosion resistance, temperature limits, and cost. Common materials for medium/low pressure flanges include:

• Carbon steel: ASTM A105 (forged) or A105N (normalized) – suitable for general service.
• Stainless steel: ASTM A182 F304/F316 – for corrosive or hygienic environments.
• Alloy steel: ASTM A182 F11/F22 – for higher temperature or pressure.

Request mill test certificates (MTC) per EN 10204 3.1 or 3.2. For critical applications, request third-party inspection reports (e.g., SGS, Bureau Veritas).

Inspection Documents Checklist

During procurement, ensure the following documents are provided:

• Material test certificates (MTC) with chemical composition and mechanical properties.
• Dimensional inspection report confirming compliance with standard tolerances.
• Visual inspection report for surface defects, cracks, or porosity.
• Hardness test report if required by the standard.
• Pressure test certificate (if applicable) for rated flanges.
• NDE reports (e.g., dye penetrant, ultrasonic) when specified.

RFQ Checklist for Flanges

Include the following in your Request for Quotation:

1. Standard: e.g., ASME B16.5 Class 150.
2. Size: NPS and schedule of the pipe.
3. Type: Weld neck, slip-on, blind, threaded, etc.
4. Material: ASTM A105, A182 F304, etc.
5. Facing: Raised face (RF), flat face (FF), ring joint (RJ).
6. Quantity: Number of units.
7. Certifications: Required MTC type, third-party inspection.
8. Marking: Per standard (e.g., ASME, material grade, heat number).
9. Packaging: Wooden cases, pallets, or crates for export.
10. Delivery terms: Incoterms, lead time, port of destination.

Quality Risks to Avoid

• Undersized flanges: Non-conformance to dimensional tolerances can cause leakage. Always request dimensional inspection reports.
• Improper heat treatment: Flanges must be normalized or annealed per material specs. Ask for heat treatment certificates.
• Surface defects: Pitting, lamination, or inclusions can lead to failure under pressure. Request visual and NDE results.
• Wrong facing finish: For raised face flanges, the surface roughness must meet standard requirements (e.g., 125 to 250 microinches). Confirm finish in RFQ.

What to Send Before Quotation

To receive accurate quotes from suppliers like Hebei Haihao Group, provide:

• Detailed flange specification sheet (as above).
• Pipe schedule and material of mating pipe (for weld neck flanges).
• Required certifications and inspection scope.
• Preferred delivery timeline and port.
• Any special marking or packaging requirements.

Conclusion

Selecting the right medium or low pressure flange requires attention to standards, materials, and documentation. By following a structured procurement process, you reduce the risk of project delays and system failures. Hebei Haihao Group offers a wide range of flanges with full traceability and quality documentation. When you have a project requiring reliable flanges, send us your RFQ with the checklist above, and we will provide a comprehensive quotation with all necessary certifications.
